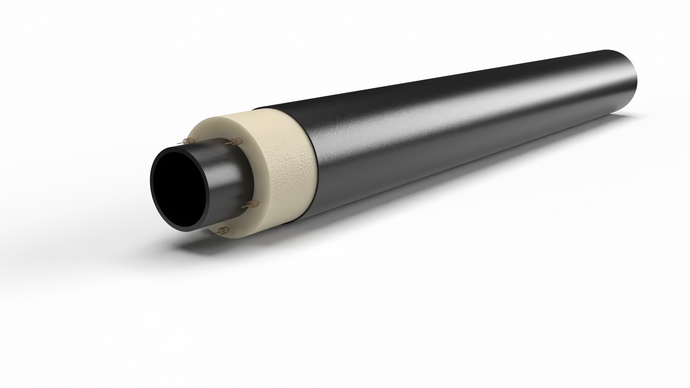

verschiedene Gerodur GEROtec ANERGIE Rohre mit und ohne Schutzmantel, als Vorlauf und Rücklauf

GEROtec ANERGIE ISO

Solid-wall pressure pipes made from state-of-the-art, durable PE100-RC for highly efficient cooling and heating of buildings using cold local heating. Optimised as supply and return pipes for heat storage and underground and above-ground heat and cold transport via a pre-insulated pipework system with integrated leak detection. For use in network areas where temperatures present a risk of heat loss to the ground.

Highly flow-efficient fluid transport
Excellent resistance to antifreeze and heat transfer fluids
Proven long-term temperature resistance
Optionally available with a certified permeation barrier layer and an additive protective coating
Excellent thermal insulation properties

TECHNICAL SPECIFICATIONS

SDR

7,4 | 11 | 17 | more on request
Dimension

32 - 630 mm
Usage

Service water
Pipe structure
GEROtec Anergie ISO pressure pipe made from PE100-RC in accordance with DIN and EN standards | single-layer pressure pipe with smooth ends | optionally available with an additional permeation barrier layer and a dimensionally added protective jacket | PUR -Rigid foam insulation of insulation classes 1 to 3 with integrated leak detection and PE-HD outer pipe
Marking
Black polyethylene pipe with coloured longitudinal stripes for supply and return lines | Media-pressure pipe and, where applicable, a permeation barrier layer and protective jacket with full metre markings in accordance with DVGW
Application/intended use
Pressure pipe for low-temperature applications up to 40°C | for underground and above-ground installation in accordance with applicable standards and regulations | installation in open trenches with a sand bed
Special feature(s)
Minimised heat energy losses | Continuous batch monitoring of PE100-RC materials | Retrofitting of insulation and the creation of a continuous connection for the leakage and detection wires in the weld area are required
Material
Type 1: Pressure pipe made of PE100-RC in accordance with the KRV e.V. approved list | Type 1 in accordance with PAS 1075
Type 3: Pressure pipe made of PE100-RC in accordance with the KRV e.V. approved list | Protective jacket made of modified polyolefin compound | Type 3 system pipe in accordance with PAS 1075 | Optional biaxially oriented polymer matrix film with embedded metallic barrier layer Insulation: Rigid polyurethane foam with integrated copper detection wire | Outer jacket pipe made of PE-HD
Dellivery forms
straight length

Suitable installation

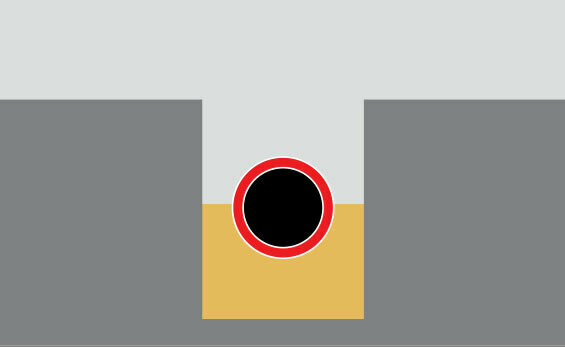

Sand bedding

When laying in a sand bed, the excavated material must be replaced with a sand bedding in accordance with DIN EN 805. Restrictions on the grain sizes of the bedding material must be observed.

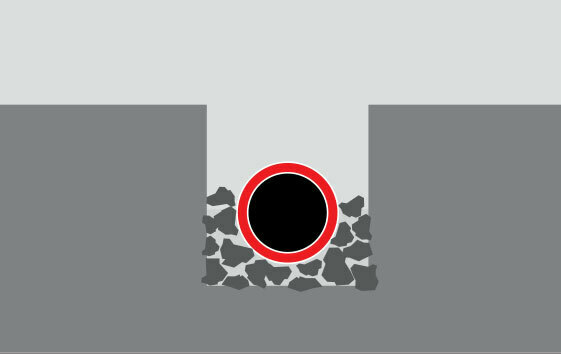

Without sand bedding

Due to the verification by an independent testing institute, the installation is possible without a sand bed. This eliminates the additional expense of replacing the excavation with a sand bedding in accordance with DIN EN 805 (transport, landfill).
