GEROblanco®

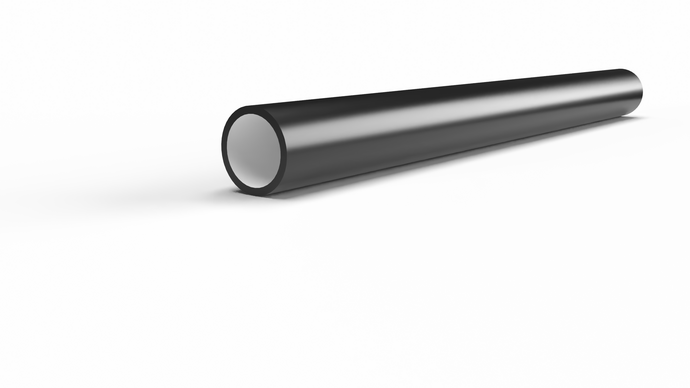

  • Gerodur GEROblanco® sewer pipe system with bright inner surface for better camera inspection

GEROblanco®

The GEROblanco® sewer pipe system is a fully weldable pipe system. It is so flexible that deformations can be absorbed by the system without causing cracks and thus leaks. Electrofusion welding guarantees a permanently tight and longitudinally and transversely force-locked connection of the pipes to each other. This eliminates the risk of root ingrowth and infiltration or exfiltration. The low roughness of the surface of GEROblanco® pipes also supports the operational safety of the pipe. A bright inner surface guarantees high inspection friendliness for camera inspection.

TECHNICAL SPECIFICATIONS

  • SDR
    17 | 21 | 33 | more on request
  • Dimension
    110 - 630 mm
  • Usage
    Drainage
  • Pipe structure
    GEROblanco® sewer pipe according to DIN and EN standards | coextruded solid-wall pipe in black with light-coloured inner surface made of PE 100 or PE 100-RC
  • Marking
    Medium pipe in black (optionally with brown stripes) | Medium pipe with complete metre marking according to DIN CERTCO
  • Application/­intended use
    Waste water or gravity pipe for underground installation in accordance with the standards listed below, KRV, DIN CERTCO and DIBt
  • Special feature(s)
    light-coloured inner surface for TV inspection | available on request in the renovation dimensions: Ø 192; 242; 292; 340; 392 mm
  • Material
    PE 100 according to the KRV positive list | PE 100-RC (according to PAS 1075)
  • Delivery forms
    bars 5 /­ 6 m and 10 /­ 12 m

Accessories

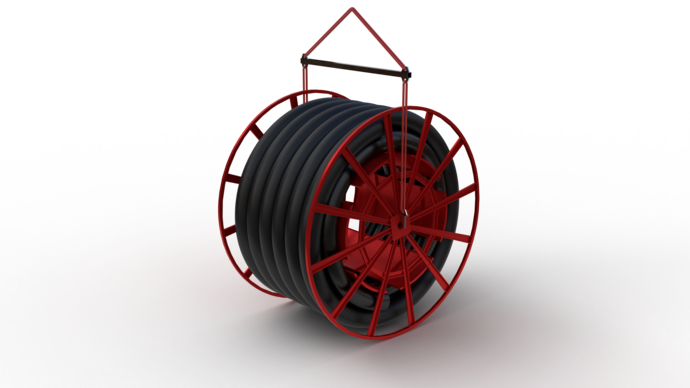

Traverse for coil drums

The specialist for professional slinging of drums on forklifts and industrial trucks.
More information
Gerodur GEROtool Traverse - The specialist in handling drums

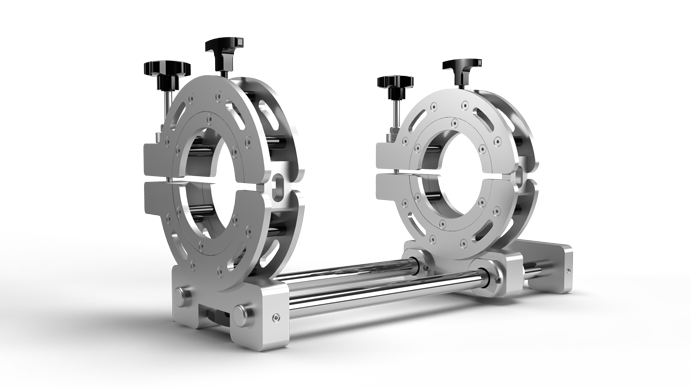

Rerounding clamps

The tackler for maximum rounding force when welding with electrofusion fittings/­sockets.
More information
Gerodur Rerounding clamps - The clamp against ovalities

References

No references found for this filter setting!

Suitable installation

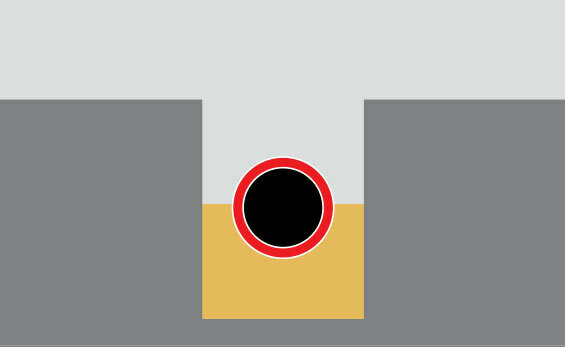

  • Gerodur laying in sand bed Computer graphics

    Sand bedding

    When laying in a sand bed, the excavated material must be replaced with a sand bedding in accordance with DIN EN 805. Restrictions on the grain sizes of the bedding material must be observed.

Similar products

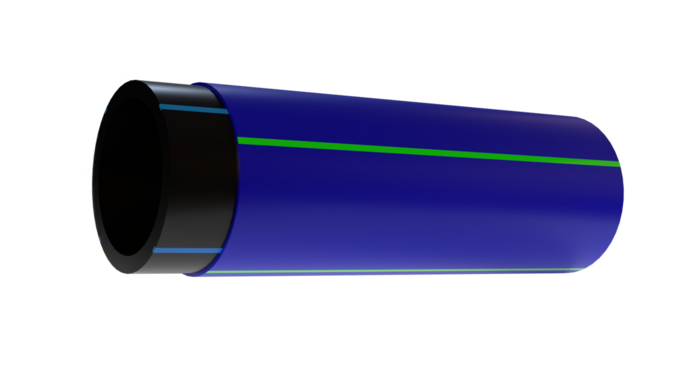

GEROfit® R


Pressure pipe with protective jacket for trenchless installation methods, additional protective functions such as notch/­scratch and crack resistance, easy and time-saving processing.
More information
Gerodur GEROfitR® computer graphics protective jacket pipe

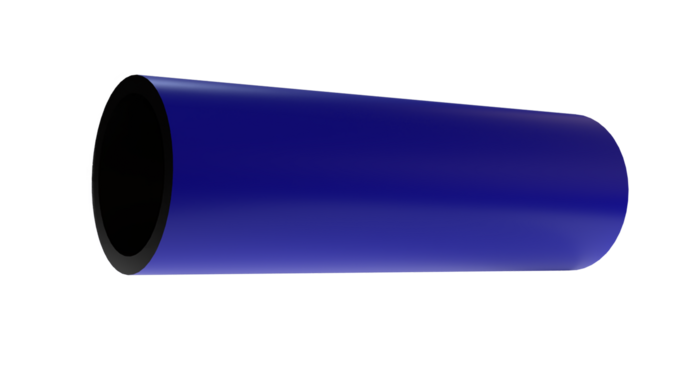

RCprotect®


Pressure pipe made of PE100 RC for more efficiency, safety and a particularly high crack resistance for alternative pipe laying.
More information
Gerodur RCprotect® computer graphic pressure pipe made of PE100-RC typ 2
