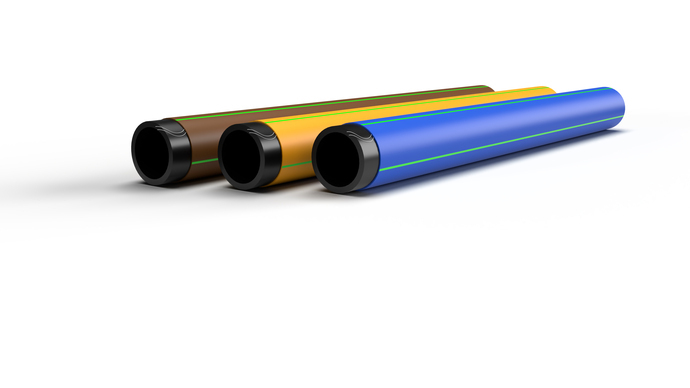

GEROfit® NEXUSLocatable protective jacket pipe

GEROfit® NEXUS can be permanently and actively located with commercially available locating devices. The protective jacket pipe can be used for all installation methods, avoids life-shortening damage to the core pipe and retains the full operational safety coefficient. See for yourself with our explanatory video!

TECHNICAL SPECIFICATIONS

  • SDR
    7,4 | 11 | 17 | more on request
  • Dimension
    90 - 630 mm
  • Usage
    Drinking water
    Gas
    Sewage water
    Industry
  • Pipe structure
    GEROfit® NEXUS pressure pipe according to DIN and EN standards | medium pressure pipe made of PE 100-RC | sinusoidal dual detection wire integrated in polyolefin carrier film | dimensionally added protective jacket made of modified polyolefin compound
  • Marking
    Medium pressure pipe in black (if necessary with coloured longitudinal stripes distributed around the circumference) | Medium pressure pipe with complete metre marking in accordance with DVGW | Coloured protective jacket with green longitudinal stripes distributed around the circumference | Protective jacket with complete metre marking in accordance with DVGW | Optional barcode for traceability
  • Application/­intended use
    Medium pressure pipe for underground installation in accordance with the standards listed below and DVGW approval | Installation in open trenches with and without sand bedding possible | Alternative and trenchless new installation and rehabilitation with subsequent locating option
  • Special feature(s)
    permanent locatability | permanent external monitoring of the PE 100-RC materials and the pipe | Gerodur drinking water pressure pipes with additional regular testing of the organoleptic (Q-Plus)
  • Material
    Media pipe PE 100-RC | protective jacket modified polyolefin compound | according to positive list of KRV e.V.
  • Standards
    DIN EN 12201 resp. DIN EN 1555 | DIN 8074/­8075 | PAS 1075 | DVGW GW 335 – A2
  • Certification
    DVGW | DIN CERTCO /­ TÜV Rheinland | international on request | ISCC Plus certification on request
  • Delivery forms
    straight length | coil | drum

This product is also available with ISCC Plus sustainability certification on request. We have summarised all the information for you here -> ISCC Plus
Product video:
GEROfit® NEXUS
Here you can find out briefly and concisely everything about the functions of our locatable premium product.

System components

  • GEROfit® NEXUS wire connectors, extensions for a reliable connection after the welding process of the locating wire system.

    Wire connectors


    Wire connectors in different lengths for connecting the integrated locating wire system in the welding area.

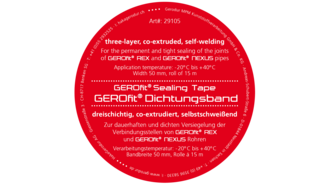

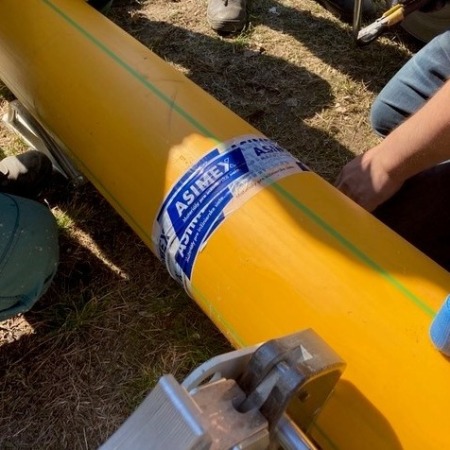

  • Gerodur GEROfit® sealing tape, for a watertight secondary coating of the stripped weld seam area of GEROfit® REX and GEROfit® NEXUS pressure pipes.

    Sealing tape


    Highly tear-resistant GEROfit® sealing tape for a watertight reprotection of welded joints and exposed pipe surfaces.
  • Gerodur GEROfit® blue fabric tape, for mechanical protection of the stripped weld seam area of GEROfit® REX and GEROfit® NEXUS pressure pipe systems.

    Fabric tape


    Scratch-resistant fabric tape for reprotection of the welding area. Easy handling thanks to subsequent curing. High flexibility when the pipe is bent.

Accessories

Peeler Set

The power pack for protective jacket pipes according to PAS 1075 type 3. For quick and easy removal of the protective jacket.
More information

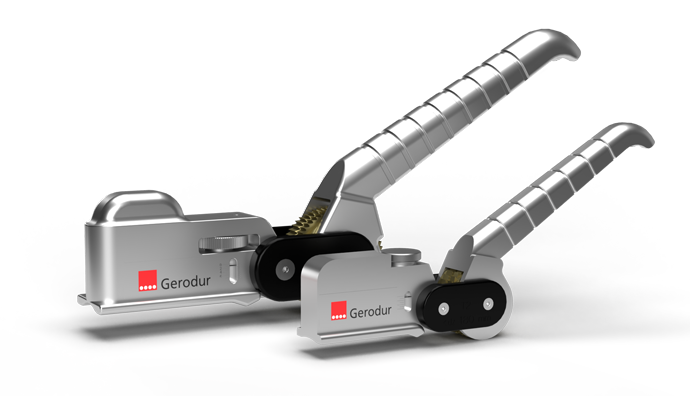

Gerodur GEROtool® Pocket Peeler, for peeling protective jacket pipe

Rerounding clamps

The tackler for maximum rounding force when welding with electrofusion sockets.
More information

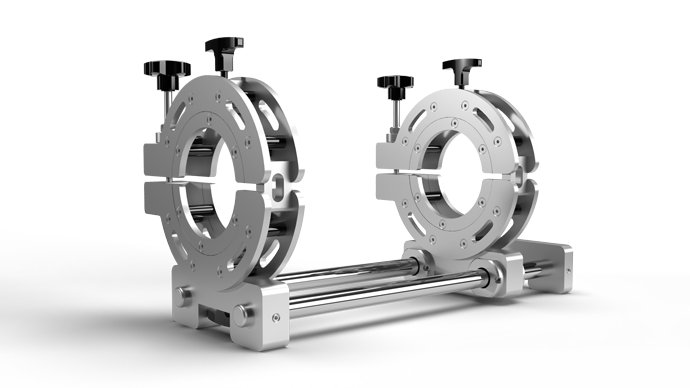

Gerodur Rerounding clamps - The clamp against ovalities

References



Suitable installation

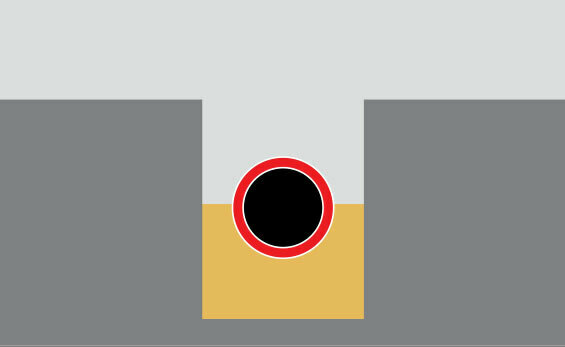

  • Gerodur laying in sand bed Computer graphics

    Sand bedding


    When laying in a sand bed, the excavated material must be replaced with a sand bedding in accordance with DIN EN 805. Restrictions on the grain sizes of the bedding material must be observed.

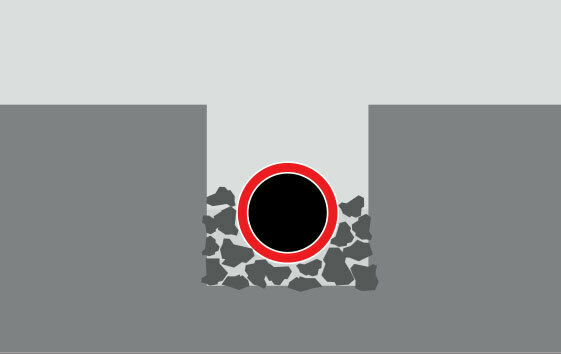

  • Gerodur laying without sand bed Computer graphics

    Without sand bedding


    Due to the verification by an independent testing institute, the installation is possible without a sand bed. This eliminates the additional expense of replacing the excavation with a sand bedding in accordance with DIN EN 805 (transport, landfill).
  • Gerodur ploughing method Computer graphics

    Ploughing


    In the ploughing method, the soil is displaced by a plough blade and the pipeline is placed on the bottom of the soil.

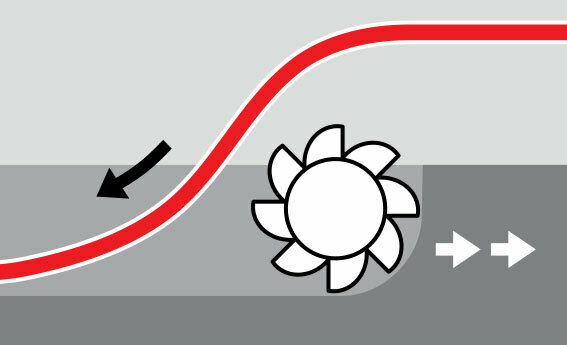

  • Gerodur milling process Computer graphics

    Milling


    In the milling process, a pipe trench is cut into the subsoil by machine and the pipeline is laid on the bottom of the trench.
  • Gerodur pipe bursting computer graphics

    Pipe bursting


    Static pipe bursting is the renewal of the old pipeline along the same of the old pipe route, which is shattered by the bursting head and the remaining fragments are pressed into the surrounding soil.

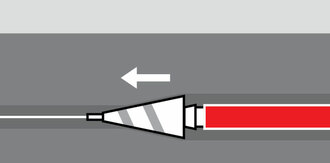

  • Gerodur Horizontal Directional Drilling (HDD) computer graphics

    Horizontal Directional Drilling (HDD)


    The new installation by HDD is usually carried out in three successive work steps. With the continuous pilot borehole, which is controlled by positioning the route is determined. This is followed by the widening of the borehole and the pulling in of the pipe string.

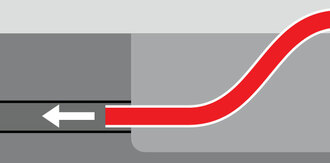

  • Gerodur relining installation computer graphics

    Relining


    In the case of relining with annular space, the new pipe string with a smaller cross-section is pulled into the cleaned old pipeline using a pull-in device.

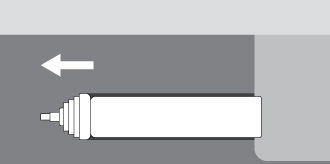

  • Gerodur soil displacement method computer graphics

    Soil Displacement Method


    In the soil displacement method, a pneumatically operated displacement hammer, a so-called "rocket", is used to excavate an underground cavity. The new pipeline is then pulled into it.

Processing instructions

Similar products

GEROfit® REX


Permeation-tight Barrier Pipe. For the protection of drinking water and the environment - predestined for contaminated or contamination-prone soils.
More information

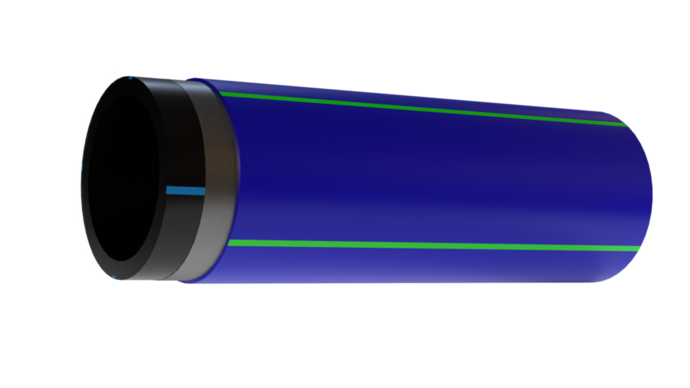

Gerodur GEROfit REX ® Barrier Pipe protective jacket pipe computer graphics - prevents the penetration of pollutants into our drinking water.

GEROfit® R


Pressure pipe with protective jacket for trenchless installation methods, additional protective functions such as notch/­­scratch and crack resistance, easy and time-saving processing.
More information

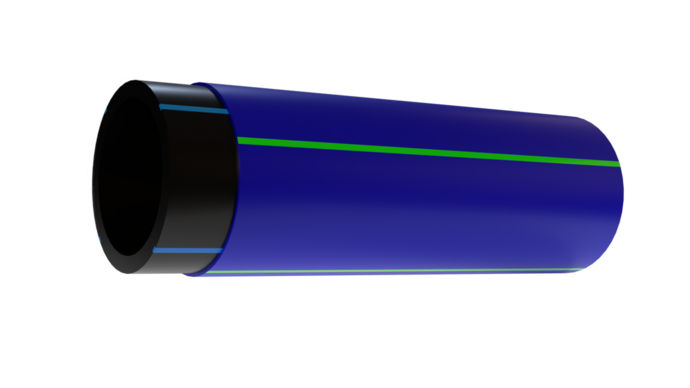

Gerodur GEROfitR® computer graphics protective jacket pipe
