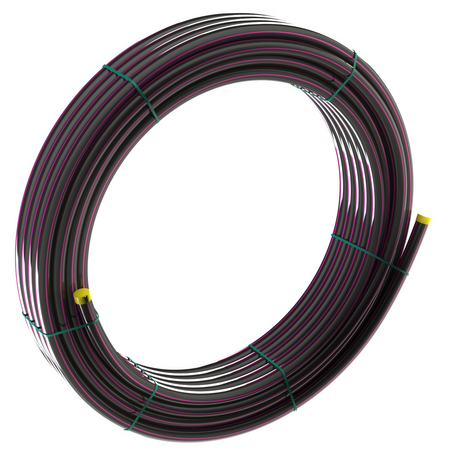

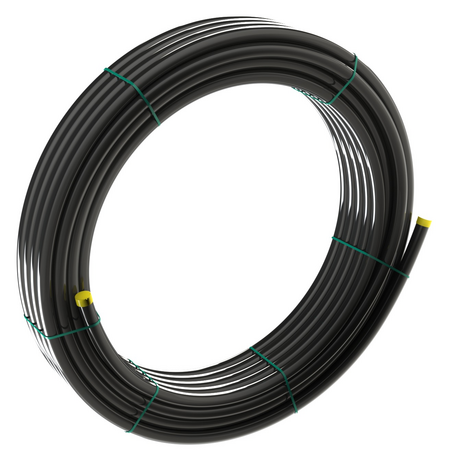

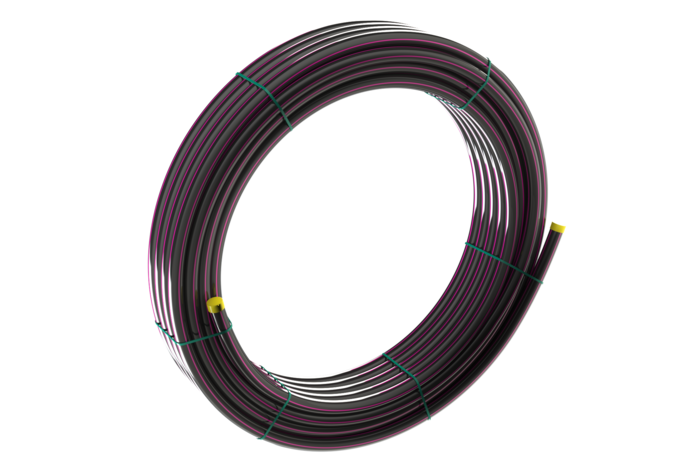

GEROtherm^® connection pipesANERGIE-rolls: with smooth ends, black with purple stripes, Industrial-rolls: smooth-ended, black

GEROtherm^® pressure pipes made from PE100-RC or PE100-RT-RC for horizontal connection of GEROtherm^® geothermal probes.

Advantages

:‎

Low density compared to other materials
High creep strength for better durability
Good chemical resistance
Extreme toughness and elongation at break
Low abrasion

A comprehensive range of accessories (smooth-ended/collared moulded parts, weld fittings, flanges, tools, machines) rounds off our delivery range.

PE100-RT-RC for greater temperature and crack resistance made from PE100-RT-RC.

Please refer to the corresponding tender specifications for a more detailed product description.

Product details PE100-RC

Material:

‎

Polyethylene PE100-RC (resistance to crack)

Delivery form:
‎

GEROtherm^{^®} ANERGIE tuyaux de connection PE100-RC de50 x 4.6 mm S5 PN 16
noire avec des bandes de marquage violettes, lisses à 660 mètres
GEROtherm^{^®} Industrie tuyaux de connection PE100-RC de50 x 4.6 mm S5 PN 16
noire, lisses à 660 mètres

Applications:

‎

Temperature range: –20°C/+40°C
Pressure resistance: PN16@ 20°C/SDR 11
Dimensions: de 25mm to de 250mm, other pipe outside diameters are available upon request

For further product details, please refer to the corresponding technical datasheet.

Product details PE100-RT-RC

Material:

‎

Polyethylene PE100-RT-RC (RT = raised temperature; RC = resistance to crack)

Delivery form:

‎

50m, 100m or 200m rolls

Applications:

‎

Temperature range: –20°C/+40°C
Pressure resistance: PN16@ 20°C/SDR 11
Dimensions: de 40mm to de 50mm, other pipe outside diameters are available upon request

_{1) The expected durability of the material depends on the duration and temperature of use, along with the inside pressure. The load limits are calculated based on the cumulative damage rule (Miner’s rule) as per SN EN ISO 13760. For an object-specific definition, the annual frequency temperature profile and the inside pressure must be provided.}

For further product details, please refer to the corresponding technical datasheet.

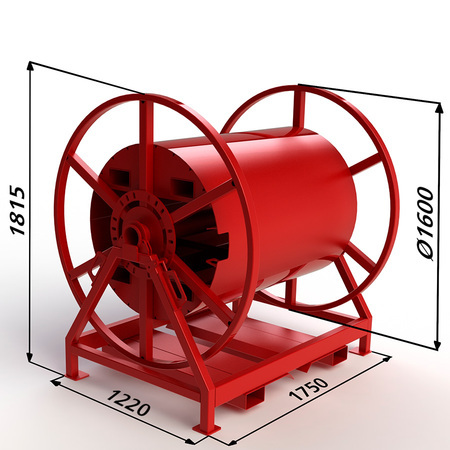

Connection line on decoiler with rack

Material:

‎

Polyethylene PE100-RC (resistance to crack)

Delivery form:

‎

GEROtherm^{^®} Industrie connecting tubes PE100-RC de50 x 4.6 mm S5 PN 16 black, coils of 660 meters
GEROtherm^{^®} ANERGIE connecting tubes PE100-RC de50 x 4.6 mm S5 PN 16 black with purple marking stripes, coils of 660 meters

APPLICATIONS:

‎

Temperature range: –20°C/+40°C
Pressure resistance: PN16*/SDR 11

For further details, please refer to the corresponding technical datasheet.

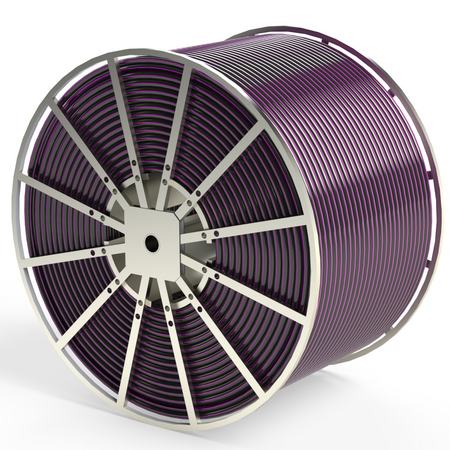

Metal reel for GEROtherm^® connecting tubes

MAterial:

‎

Polyethylene PE100-RC (resistance to crack)

Delivery Form:

‎

GEROtherm^{^®} ANERGIE connecting tubes of PE100-RC de50 x 4.6 mm S5 PN 16 black with violet marking stripes, coils of 2’000 meters
GEROtherm^{^®} Industrie connecting tubes of PE100-RC de50 x 4.6 mm S5 PN 16 black, coils of 2’000 meters

Applications:

‎

Temparature range: -20°C/+40°C
Pressure resistance: PN16@20°C/SDR 11

For further details, please refer to the corresponding technical datasheet.

Price list

(For the price list in € please contact our sales team.)

Price list GEROtherm^® Connecting pipes

Technical datasheets

Technical datasheet connecting pipes ANERGIE RT-RC PN16

Technical datasheet connecting pipes industry RT-RC PN16

Technical datasheet connecting pipes industry PN16

Technical datasheet connecting pipes ANERGIE PN16

Technical datasheet metal reel for GEROtherm^® connecting pipes de50

Technical datasheet connection pipes on decoiler with rack

Tender specification

Tender specifications GEROtherm^® connection pipes

Certificates

Certificate SKZ No. A278

Certificate KIWA KOMO No.: K84660/02

Dimensions

Dimension	Pressure resistance	Standard lengths	Material
25 x 2.3 mm to 90 x 8.2 mm	PN16@20ºC/SDR11	50, 100, 200 m	PE100-RC	Price list page 63
32 x 3.0 mm to 50 x 4.6 mm	PN16@20ºC/SDR11	50 - 300 m	PE100-RT-RC	Price list page 65

The connection lines are available on the red rental reels or the large metal reels from HakaGerodur AG. Please refer to the technical datasheet for more precise information about the connection lines on reel with frame.
Larger decoilers available upon request. Please refer to the technical datasheet for more precise information about the connection lines on the large metal reels.

Accessories

GEROtherm^® warning tape
