GEROtherm^® grouting tubes

principle:

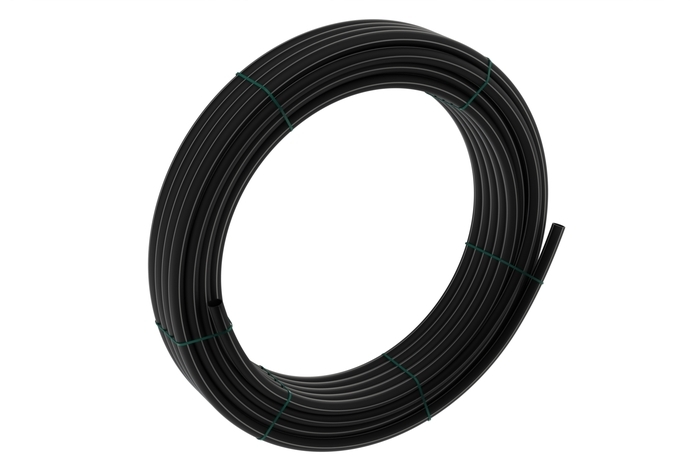

GEROtherm^® grouting tubes are made from high-quality PE to ensure safe and reliable backfilling.

Please refer to the corresponding Technical datasheet and the Tender specifications for a more detailed product description.

Product details

Material:‎

‎

Polyethylene PE-HD

Application:‎

‎

This grouting tube made from PE-HD withstands injection pressures of up to 32 bar@ 20°C for short periods.
Dimensions: 25 mm × 2.3 mm in lengths of 52 m – 402 m (with red stripes)
Dimensions: 32 mm × 3.0 mm in lengths of 52 m – 502 m (with grey stripes)

For further product details, please refer to the corresponding Technical datasheets.

Advantages

This tube is made from a high-quality PE-HD material to ensure safe and reliable backfilling of the borehole when installing geothermal probes.
It features an abrasion-resistant metre count running forwards and backwards, together with the production date and batch.

Please refer to the corresponding Tender specifications for a more detailed product description.

Price list

(For the price list in € please contact our sales team.)

Price list GEROtherm^® geothermal probes

Technical datasheet

Technical datasheet grouting tubes

Tender specifications

Tender specifcations GEROtherm^® grouting tubes

Dimensions

Dimension	Pressure resistance	Standard lengths
Grouting tubes de 25 mm	Withstands an injection pressure up to 32 bar@20°C for short periods	52 - 402 m	When placed individually on probes
"	"	"	Delivered as complete pallet
Grouting tubes de 32 mm	Withstands an injection pressure up to 32 bar@20°C for short periods	52 - 502 m	When placed individually on probes
"	"	"	Delivered as complete pallet
