GEROtherm^®Horizontal earth collector kit

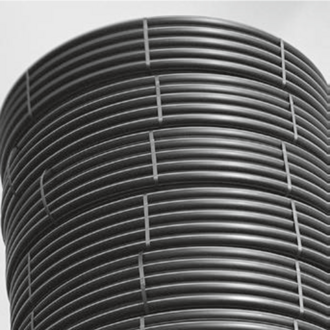

Horizontal earth collector made of PE100-RC, PN16, SDR11 dn32x3.0 mm in 125 m coil.

Collector and distributor SAVE 97 with the corresponding amount of connections (2 to 8 circuits) consisting of:

Ball valves +GF+ 375 with removable ball seat
Main outlet PE pipe sockets de 63 mm
Filling and venting valve ½ʺ

iJOINT connector sockets dn 63 mm 2 units
iJOINT connector sockets dn 32 (4 to 16 units)
Attachment set for distributor and collector

Max. flow rate 7.9 m³/h @ 1 m/s in SAVE

You can find a detailed product description on the Flyer and the corresponding Tender specification.

Components

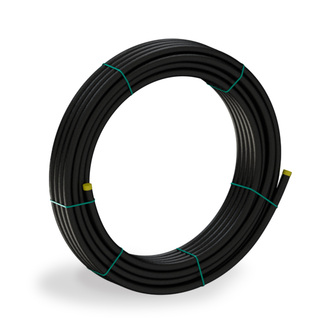

Pipes à 125m

Collector and Distributor SAVE 97

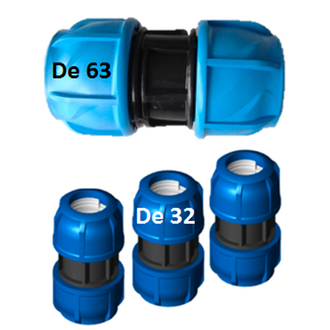

Compression fitting

Mounting kit

Product details

MAterial:

‎

PE100-RC‎

APPLICATIONS:

‎

0.8 to 1.5 m
Recommended installation spacing 0.3 to 0.8 m
Minimum bending radius at 0°C 50 × dn
Minimum bending radius at 20°C 20 × dn
Temperature range –20°C / +40°C
Pressure resistance PN16/SDR11

Advantages

The most important main components for the installation of a earth collector are delivered technically coordinated with each other in one delivery.

Price list

(For the price list in € please contact our sales team.)

Price list GEROtherm^® KOAX / Horizontal earth collector kit / Energy piles

Technical datasheets

Technical datasheet horizontal earth collector tubes

Technical datasheet mounting set

Technical datasheet SAVE 97

Flyer

Flyer Horizontal earth collector kit

Tender specifications

Tender specifications GEROtherm^® Horizontal earth collector kit

Assembly information

Assembly information GEROtherm^® KIT

Packing list / etiquette

Packing list/etiquette horizontal earth collector kit

Example of laying formations:

Normal formation

M-formation

E-formation

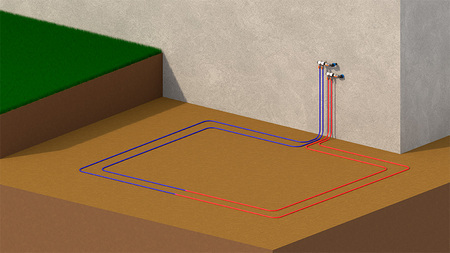

O-formation

Spiralformation

U-formation

>KIT< Part no.:	WP KW	COP 4.0 20 W/m²	COP 4.5 20 W/m²	Coils dn 32 x 3,0 x125m
112377	5,6	4,2 KW / 210m²	4,4 KW / 218m²	2 x 125m	Price list page 90
112379	8,4	6,3 KW / 315m²	6,3 KW / 327m²	3 x 125m	"
112380	11,3	8,5 KW / 424m²	8,8 KW / 439m²	4 x 125m	"
112381	14,1	10,6 KW / 529m²	11,0 KW / 584m²	5 x 125m	"
112382	16,9	12,7 KW / 634m²	13,2 KW / 657m²	6 x 125m	"
112383	19,8	14,9 KW / 734m²	15,4 KW / 770m²	7 x 125m	"
112384	22,5	16,9 KW / 844m²	17,5 KW / 875m²	8 x 125m	"

References

> more
GEROtherm^® - Cooling of industrial processes in the low temperature range

Accessories

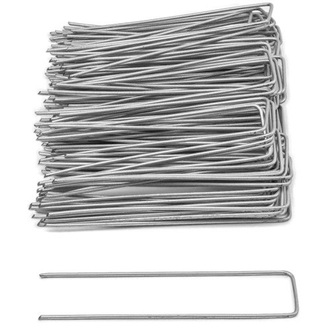

Ground hooks for fixing the earth collector pipes Length of the hook: ~ 20 cm, We recommend 25 ground hooks(1 set) per 200 m earth collectors.
