GEROtherm^® manholeType 4

Fully assembled, customer-specific manholes are manufactured for various structures and customised to your needs. The GEROtherm^® manhole is factory-equipped with all necessary shut-off and control fittings and meets the highest quality standards.

Intended for use in floor slabs, parking areas and groundwater.

HakaGerodur AG should be contacted for installation situations with increased requirements for groundwater tightness or statics.

Product details

Max. flow 118.4 m³/h = SAVE 250 (V˙ max. @ 1m/s)
From 37 connections
Main pipe de 1,600 mm / 1,800 mm / 2,000 mm
Probe connections de 32 + 40 + 50 mm
+GF+ ball valves 375 made of PVC
Control valves brass inline 20–70 l/min
Plastic hyline control valves 10–25 or 20–60 l/min
Design with and without filling/drainage valve and venting
Lateral outlet PE pipe

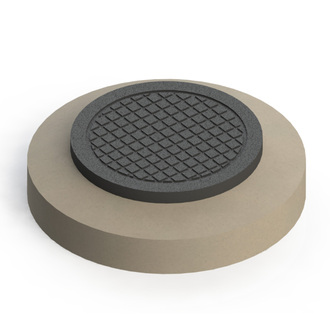

Cast lid class A15/B125/D400 EN 124
Structure-specific manufacturing

You can find further product details on the corresponding flyer in the Download area.

Every manhole is fully factory pre-assembled, tested and documented with a corresponding test report.

Advantages

Installed SAVE 97, SAVE 125, SAVE 180, SAVE 250 collector/distributor incl. connections for geothermal probes
Main outlet can be chosen on the left or right
The welded probe connections are routed to the outside through the manhole wall and are water pressure-tight
Manhole access optionally equipped with an inspection-friendly cover that can be walked or driven on
Optimal and horizontal probe connection with laying tank
Pressure test 10 bar with collector/distributor bar in installed condition according to pressure test report
Serial number per system for 100% continuous traceability
Extra-thick weld seams for increased stability and water pressure tightness
Prepared for uplift protection

Price list

(For the price list in € please contact our sales team.)

Price list EWS GEROtherm^® container construction

Tender specification

Tender specifications manhole type 4

Flyer

Flyer GEROtherm^® manholes

Description

Description manhole cover D400

Installation instructions

Installation instructions for manholes

Request / Order form

Request / Order form manhole type 4 (2 main connections)

Request / Order form manhole type 4 (4 main connections)

Definition

Definition of left or right main outlet

Dimensions

Guideline values for the dimensions are summarised in the corresponding document.
Object-specific drawings are created on the basis of the effective configuration.

Standard values manhole T1-4
