GEROtherm^® PACKER

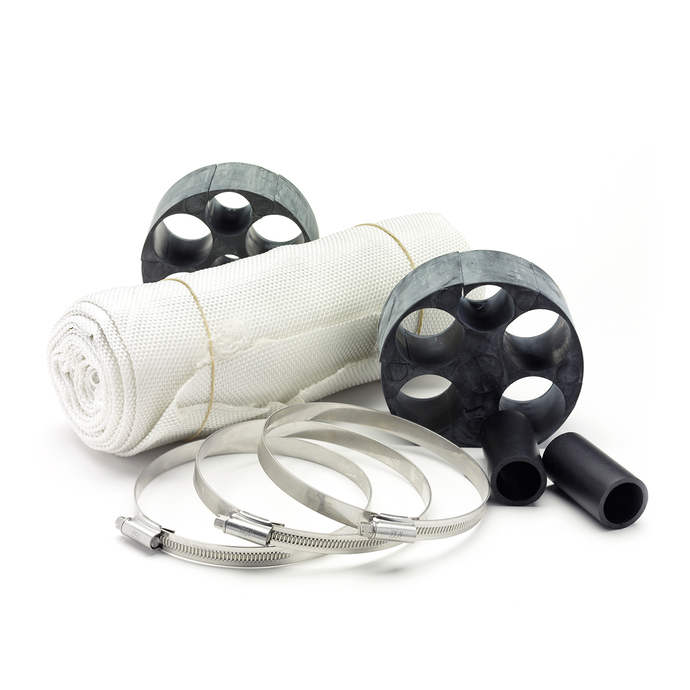

The GEROtherm^® PACKER is a sealing system used in boreholes for geothermal probes. Fabric hose available separately in lengths of 3 m to 100 m.

‎

Concluding report EWS sealing systems for the investigation by EnergieSchweiz, Swiss Federal Office of Energy (SFOE).
Water protection for geothermal probe boreholes.
Overview of sealing systems for protecting groundwater.

For further product details and measurements, please refer to the corresponding technical datasheet.

Price list

(For the price list in € please contact our sales team.)

Part no.	Designation	Dimension mm	Borehole diameter mm	Length m	Weight kg per pc.
108158	GEROtherm^® PACKER ⌀ 150mm	32	127-140	2.5	3.2	Price list page 56
108160	GEROtherm^® PACKER ⌀ 175mm	32	140-165	2.5	3.2	"
108161	GEROtherm^® PACKER ⌀ 150mm	40	127-140	2.5	3.2	"
108159	GEROtherm^® PACKER ⌀ 175mm	40	140-165	2.5	3.3	"
108162	GEROtherm^® PACKER FLUX/REX ⌀ 175mm	43	140-165	2.5	3.3	"
100223	GEROtherm^® PACKER REX ⌀ 150mm	35	127-140	2.5	3.2	"

Part no.	Designation	Dimension mm	Borehole diameter mm	Length m	Weight kg per pc.
104630	Fabric hose ⌀ 150mm	-	127-140	1-100	0.5	Price list page 56
104629	Fabric hose ⌀ 175mm	-	140-165	1-100	0.5	"
