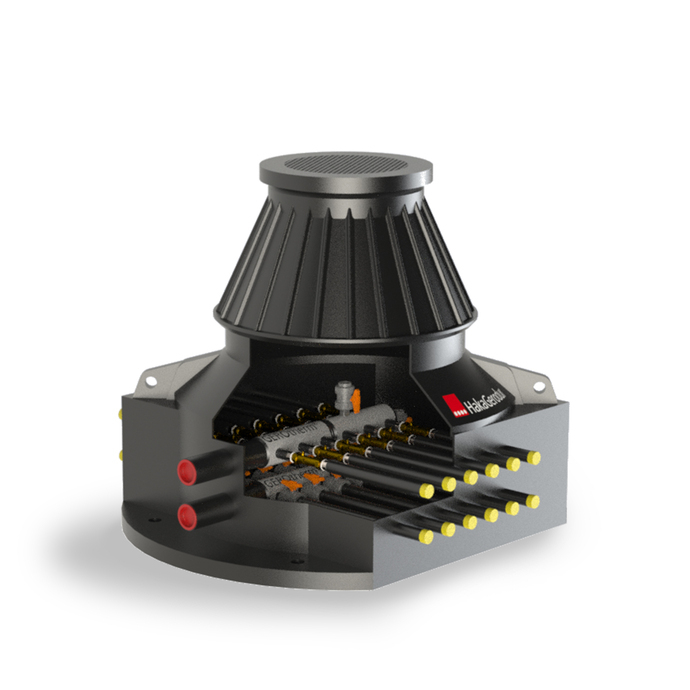

- Suitable for brine amounts of up to 19.6 m3/h
- Measurement ranges of the inline flow valve from 20 to 70 l/min per connection or alternatively 5 to 42 l/min
- For geothermal probes single U and double U ø 32 and 40 mm
- Connections for 9 to 16 geothermal probes
- Connections in the dimensions ø 40 and 50 mm
- With filling/drainage valve Rp 1¼"
- Connection pipe to water pump dimension ø 63 mm /- ø 75 mm and ø 90 mm
- Main outlet left, right or on both sides (on both sides in the case of 16 connections)
- Main barrier optional (with 5–8 connections, separate configuration: see Price list on page 102)
- For weight and prices, see the Price list on page 103
You can find further product details on the corresponding Flyer in the Download area.
