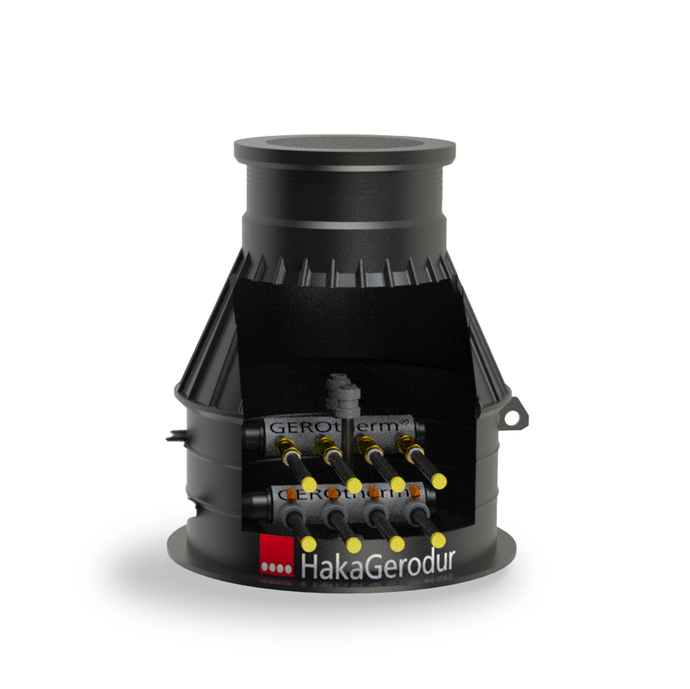

GEROtherm® small manholeType M

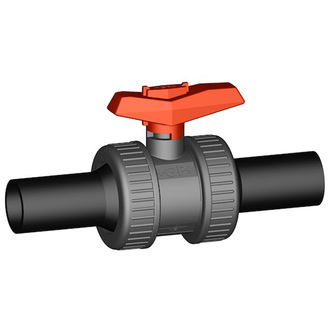

Small manhole made of plastic for connecting geothermal probes outside. Suitable for brine amounts of up to 19.6 m3/­­h*. SAVE 125 flow with ball valve and return with control valve inline setter.

The GEROtherm® small manhole impresses users as a tried-and-tested product.‎

Please refer to the corresponding Tender specifications for a more detailed Product description.

* V˙ max. m3/­­h @ 1m/­­s in SAVE

Product details

  • Suitable for brine amounts of up to 19.6 m3/­­h
  • Measurement ranges of the inline flow valve from 20 to 70 l/­min per connection or alternatively 5 to 42 l/­min
  • Connections for 2 to 8 geothermal probes
  • Connections in the dimensions ø 40 and 50 mm
  • With filling/­drainage valve Rp 1¼"
  • Connection pipe to water pump dimension ø 63 mm and ø 75 mm
  • Main outlet left or right (on both sides in the case of 8 connections)
  • Main barrier optional (with 5–8 connections, separate configuration: see Price list on page 110)
  • For weight and prices, see the Price list from page 106


You can find further product details on the corresponding Flyer in the Download area.

Every manhole is fully factory pre-assembled, tested and documented with a corresponding test report.

Advantages

  • Fully factory pre-assembled, tested and ready to connect to the electrofusion coupler sockets
  • Installed and pressure-tested GEROtherm® collector/­distributor 97 impresses with its extremely low pressure loss, which increases the energy efficiency of the entire system
  • Every brine circuit can be regulated and shut off individually
  • Radially removable ball valves and balancing valves enable easy replacement in the event of damage
  • Handles for easy transport on the construction site

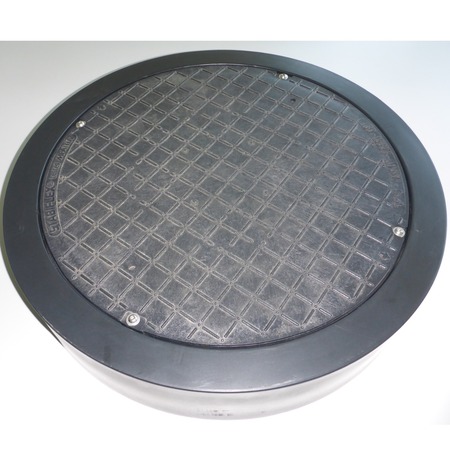

  • The plastic cover can be walked on (up to a weight of 200 kg); not suitable for vehicles
  • Uplift protection can be implemented on the outer bottom with backfill material
  • Dome can be shortened if necessary
  • Customer-specific adjustments /­ optimisations possible at any time

Price list

(For the price list in € please contact our sales team.)

Installation instructions

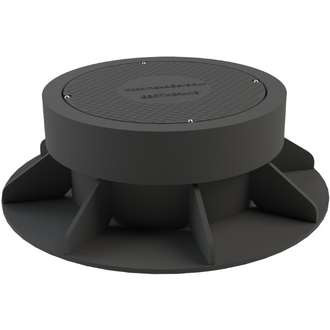

Comparison of manhole covers - example type M
