GEROtherm^® VARIO-REXThe conical, pressure loss-optimised and complete diffusion-tight geothermal probe with protective layer

PRINCIPLE:

The conical, pressure-optimised and complete diffusion-tight GEROtherm^® VARIO-REX geothermal probe prevents the penetration of gaseous substances. The completely diffusion-resistant double-U probe for shallow geothermal use. Resists internal pressure up to PN20@20°C.

DESIGN:‎

The foot foot (U-bend) features the same geometry as the double-U probes, but with a vapour-deposited metallic film layer and protective lacquer coating. The conical core pipe, which carries the medium, is made from state-of-the-art, crack-resistant PE100-RC and is certified to SKZ HR3.26. The pipe’s diffusion resistance is achieved by using a polymer-matrix film with an integral diffusion barrier. It also features a scratch-resistant protective jacket for mechanical protection. This innovation is patented; Patent No. EU 3 450 878 und EP 2 706 308

Product details

Material
‎

Core pipe made from PE100-RC (RC = resistance to crack); diffusion barrier made of polymer matrix film; polypropylene PP protective layer

Applications
‎

Temperature range: -20°C / +40°C

Pressure resistance: bis PN20@20°C / SDR 9
Dimensions: de 43 mm

For further product details, please refer to the corresponding Technical datasheet.

Advantages

Pressure resistance up to 20 bar
Greater resistance thanks to reinforced walls on probe foot (U-bend); PN25
Optimised hydraulic pressure loss and therefore more efficient overall systems
Significantly improved buckling pressure resistance in the lower section

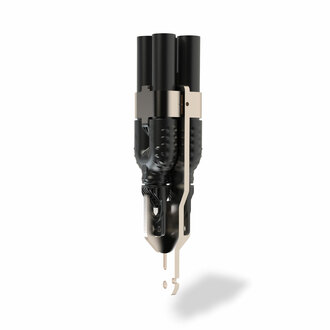

Compatible with the GEROtherm^® weight system‎, the GEROtherm^® PUSH-FIX impact-resistant sleeve including weight connector and the GEROtherm^® UNI-FIX universal weight mounting
Larger cross-sections and welded coupler sockets for lower hydraulic resistance
Proven mud container in probe foot (U-bend) with two ribs that make it easier to use a measuring float
No need for welding on site
DIN EN 12201-2
Patent No. EU 3 450 878 and EP 2 395 301
On request, the geothermal probe can also be produced on our rental metal reels
