Collector/­distributorSAVE 97


You can trust the quality of our premium products. The GEROtherm® SAVE collector/­distributors stand out thanks to their extremely low pressure losses, thus boosting the overall efficiency of the plant. The Kvs values are available for all SAVE products. They are quick and easy to install thanks to their flat-sealing connections, with no need for complex hemp sealing. Should you have any special needs or wishes, we are the right partner for you. We deliver individually customised products quickly.

Please refer to the corresponding Flyer, Technical datasheet or Tender specifications for a more detailed product description.

Product details

APPLICATIONS:


  • Max. flow: 7.9 m3/­h*
  • Material: PE100-RC
  • Temperature range: –20°C/­+40°C
  • Temperature range@ max. 3 bar: –20°C/­+50°C


* V˙ max. (m3/­h) @ 1m/­s in SAVE‎

PROPERTIES:


  • Main outlet to heat pump can optionally be R2" or PE pipe dimensions ø 63 mm

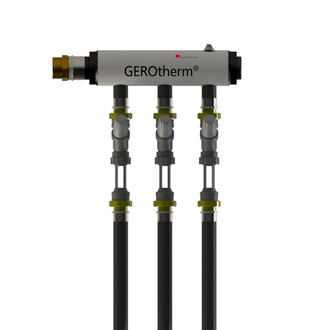

  • Optionally with or without filling/­­drainage valve
  • Bleeder R½"
  • 1 connection ½”‎
  • 2 to 8 connections de 32 mm or
  • 2 to 6 connections de 40 mm or 50 mm‎

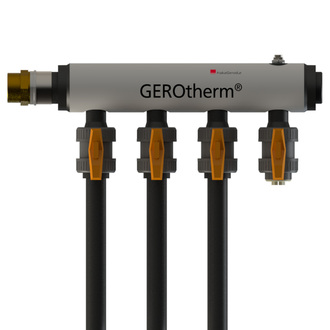

WITH BALL VALVE


  • High-quality plastic ball valve TYPE GF 375 with removable ball seat
  • Flat-sealing connections with ball valve

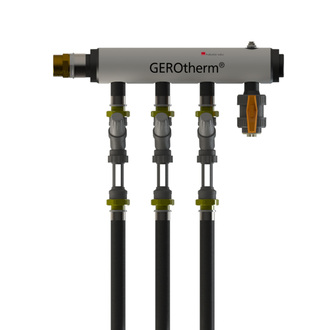

WITH BALANCING VALVE‎‎


With hyline connection:
  • de 40 = 10–25 l/­min or 20–60 l/­min selectable
  • de 50 = 20–60 l/­min‎

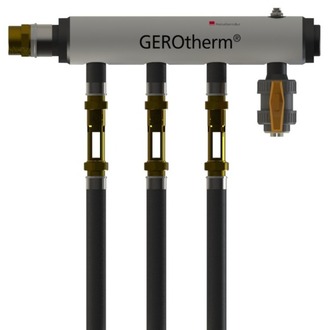

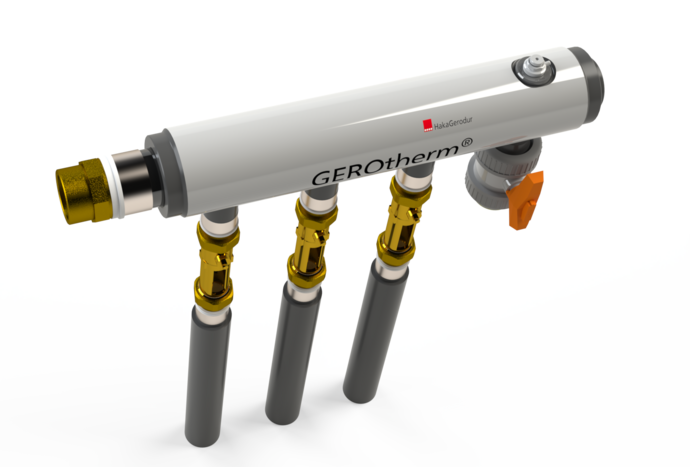

With inline connection:
  • de 32 = 20–70 l/­min or 5–42 l/­min selectable
  • de 40 = 20–70 l/­min or 5–42 l/­min selectable
  • de 50 = 20–70 l/­min or 5–42 l/­min selectable‎


For weight and prices, see the Price list on pages 70.

For further product details, please refer to the corresponding Flyer.

Advantages

  • They are easy to install, and work safely and reliably. Flat-sealing connections let you assemble them quickly.
  • The welded connections comply with the DVS Guideline 2207-1
  • the GEROtherm® SAVE collector/­distributor meets the requirements of SIA 384/­6.
  • Certified and monitored by SKZ. SKZ certification no. A278‎
