SESU-pipeSelf-sinking pipe system
SESU-pipeSelf-sinking pipe system
SESU. This stands for self-submerging. SESU pipes from our Norwegian partner Hallingplast are completely newly developed PE 100-RC pressure pipes with a ballasted outer casing. They allow for easier logistics and fast and economical underwater installation. A robust solution that lasts for generations.
TECHNICAL SPECIFICATIONS
-
SDR7,4 | 11 | 17 | more on request
-
Dimension32 - 630 mm
-
Usage
Drinking water
Sewage water
Industry
Cable protection pipe -

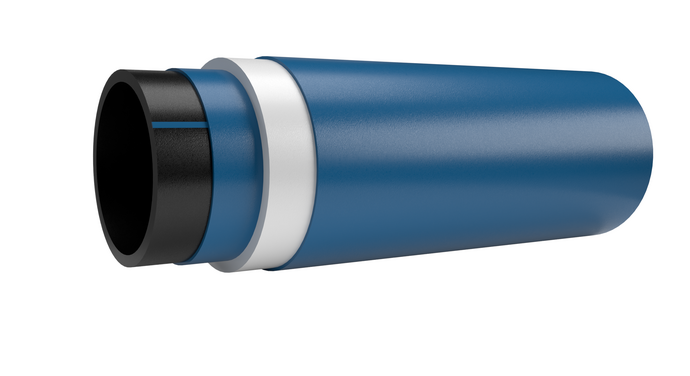

Pipe structure
SESU pressure pipe according to DIN and EN standards | media pressure pipe made of PE100-RC | Dimensionally additive, polyolefin separating layer | Mineral-based ballast layer | dimensionally added protective jacket based on PAS 1075
-
Marking
Medium pressure pipe in black with coloured longitudinal stripes | Media pressure pipe with complete metre marking | separating layer and outer polyolfin protective jacket in media colour
-
Application/intended use

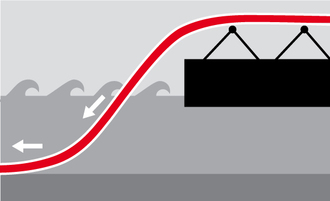

Medium pressure pipe for underwater installation, application according to standards
-
Standards
EN 12201
-
Special feature(s)
Self-sinking pressure pipe with integrated ballasting through mineral-filled PP protective jacket
-
Material
Inner media pressure pipe made of PE100-RC
Polyolefin separating layer
Ballast layer made of mineral-filled PP
Outer protective jacket made of modified polyolefin compound -
Delivery forms
straight length | coil | drum
-
Tender texts
SESU-pipe Sewage pressure pipe, self-sinking at Ausschreiben.de
SESU-pipe Potable water pressure pipe, self-sinking at Ausschreiben.de
SESU-pipe Process water pressure pipe, self-sinking at Ausschreiben.de
EMDS conduit pipe High performance class SESU-pipe, self-sinking PE100-RC at Ausschreiben.de
This product is also available with ISCC Plus sustainability certification on request. We have summarised all the information for you here -> ISCC Plus
New video:
Reliable seawater supply for research centre
With the new construction of the GEOMAR Helmholtz Centre for Ocean Research in Kiel, the institute has also received a new seawater pipeline that will significantly improve research operations. Self-sinking SESU PE100-RC pipes from the Norwegian manufacturer Hallingplast were chosen for the pipeline, which do not require additional ballasting and therefore save time and costs during subsea installation. The pipes are particularly robust, protect against buoyancy and external influences such as anchor throw and rockfall and were specially developed for laying on the water bed. The construction work was completed in July 2024 and will ensure a reliable supply of seawater for the research centre.
Reliable seawater supply for research centre
With the new construction of the GEOMAR Helmholtz Centre for Ocean Research in Kiel, the institute has also received a new seawater pipeline that will significantly improve research operations. Self-sinking SESU PE100-RC pipes from the Norwegian manufacturer Hallingplast were chosen for the pipeline, which do not require additional ballasting and therefore save time and costs during subsea installation. The pipes are particularly robust, protect against buoyancy and external influences such as anchor throw and rockfall and were specially developed for laying on the water bed. The construction work was completed in July 2024 and will ensure a reliable supply of seawater for the research centre.
Accessories
More information
Rerounding clamps
The tackler for maximum rounding force when welding with electrofusion fittings/sockets.More information
References
Similar products

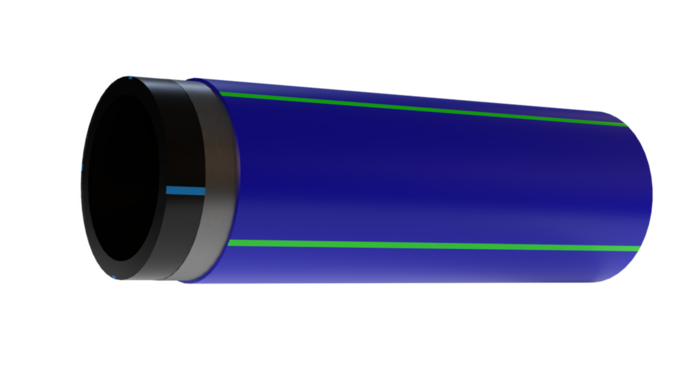

GEROfit® REX
