GEROtec FIRE-MAIN

Tested product quality for underground public and industrial extinguishing water networks with an operating life of at least 100 years.

TECHNICAL SPECIFICATIONS

  • SDR
    7,4 | 11 | 17 | more on request
  • Dimension
    32 - 630 mm
  • Usage
    Fire-fighting water

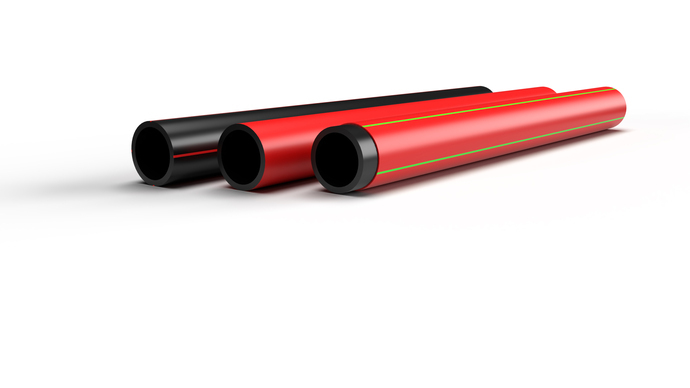

  • Pipe structure
    GEROtec Fire-Main pressure pipe made of PE100-RC according to DIN and EN standards |
    Single-layer media pressure pipe with smooth ends | Optionally two-layer pipe or with dimensionally added protective jacket
  • Marking
    Polyethylene pipe in black with red longitudinal stripes | Optionally in black and coloured outer layer | Medium pressure pipe and protective jacket with complete metre marking in accordance with DVGW
  • Application/­intended use
    Pressure pipe for fire water distribution | for underground installation in accordance with the standards and regulations listed below | installation in open trenches with and without sand bedding | suitable for trenchless installation methods in accordance with DVGW regulations
  • Special feature(s)
    Suitable for point loads (highest resistance to slow crack grow) | Permanent batch control of PE100-RC materials | Processing using the butt welding method without prior cutting back of the protective jacket
  • Material
    Type 1 and 2: Pressure pipe made of PE100-RC according to the KRV e.V. positive list | Type 1 or Type 2 according to PAS 1075
    Type 3: Pressure pipe made of PE100-RC according to the positive list of KRV e.V. | Protective jacket made of modified polyolefin compound | System pipe type 3 according to PAS 1075
  • Delivery forms
    straigth length | coil | drum

System components

  • Hydrant

    Stainless steel above-ground hydrants and standpipes with flanged outlet of your choice for rapid fire-fighting water extraction.

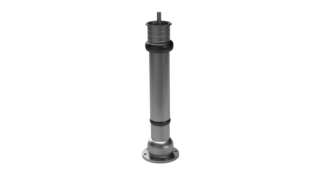

  • Hydrant base

    Stainless steel underground hydrants, height-adjustable on request with telescopic service pipe and actuation unit.
  • Hydrant socket

    Hydrant socket for connection to the PE extinguishing water network as a choice of plug-in, welded or flanged connection.

Accessories

Peeler Set

The power pack for protective jacket pipes according to PAS 1075 type 3. For quick and easy removal of the protective jacket.
More information

Rerounding clamps

The tackler for maximum rounding force when welding with electrofusion sockets.
More information

References

Suitable installation

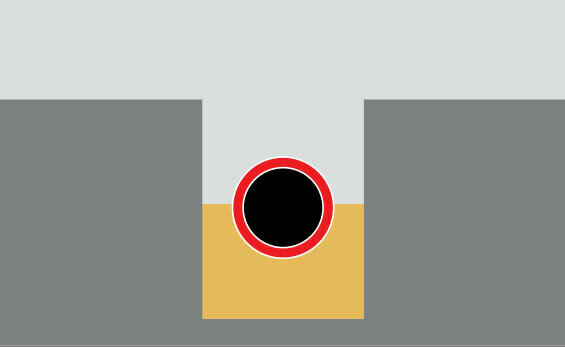

  • Sand bedding


    When laying in a sand bed, the excavated material must be replaced with a sand bedding in accordance with DIN EN 805. Restrictions on the grain sizes of the bedding material must be observed.

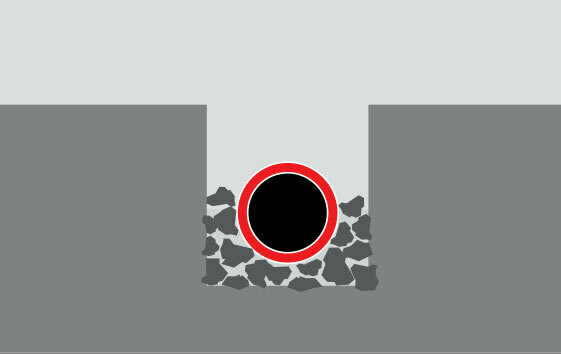

  • Without sand bedding


    Due to the verification by an independent testing institute, the installation is possible without a sand bed. This eliminates the additional expense of replacing the excavation with a sand bedding in accordance with DIN EN 805 (transport, landfill).

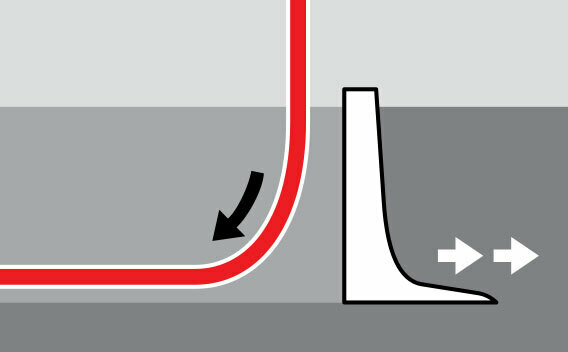

  • Ploughing


    In the ploughing method, the soil is displaced by a plough blade and the pipeline is placed on the bottom of the soil.

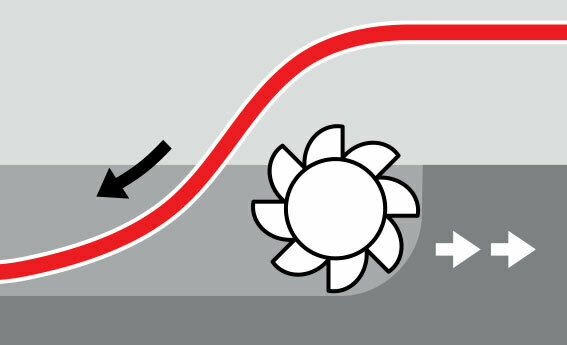

  • Milling


    In the milling process, a pipe trench is cut into the subsoil by machine and the pipeline is laid on the bottom of the trench.

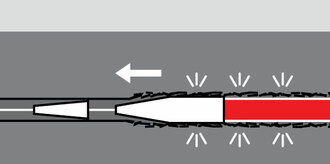

  • Pipe bursting


    Static pipe bursting is the renewal of the old pipeline along the same of the old pipe route, which is shattered by the bursting head and the remaining fragments are pressed into the surrounding soil.
  • Horizontal Directional Drilling (HDD)


    The new installation by HDD is usually carried out in three successive work steps. With the continuous pilot borehole, which is controlled by positioning the route is determined. This is followed by the widening of the borehole and the pulling in of the pipe string.

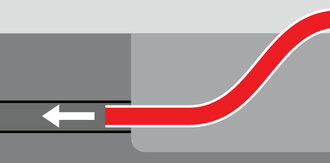

  • Relining


    In the case of relining with annular space, the new pipe string with a smaller cross-section is pulled into the cleaned old pipeline using a pull-in device.

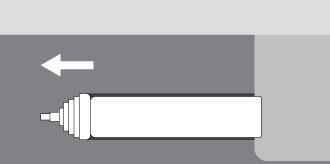

  • Soil Displacement Method


    In the soil displacement method, a pneumatically operated displacement hammer, a so-called "rocket", is used to excavate an underground cavity. The new pipeline is then pulled into it.
