Modernisation of the wastewater disposal system in Kreßberg

Expansion and renovation of the Riegelbach wastewater treatment plant
Laying of new wastewater pressure pipeline Asbach - Halden
Municipality of Kreßberg (Schwäbisch Hall)
New sewage pressure pipe line with the HDD-method
The wastewater disposal system in the municipality of Kreßberg is being modernised with funding from the state government of Baden-Württemberg. As part of this project, the Wüstenau sewage treatment plant will be decommissioned and the site subsequently renaturalised. At the same time, a wastewater pumping station is being built, from which the wastewater that has to be treated and purified here up to now will be channelled to a unification shaft in Asbach. The municipality of Kreßberg opted for a three-layer pressure pipe made of PE100-RC from Gerodur for the laying of a new main sewage pipe to the extended and modernised Riegelbach wastewater treatment plant. The RCprotect® wastewater pipe is laid using the environmentally friendly Horizontal diredtional drilling method (HDD) and, thanks to the integrated, light-coloured inner layer, is ideally suited for future, operational pipe inspections.

TECHNICAL SPECIFICATIONS

Type of pipe

RCprotect® - PE100-RC pressure pipe
3-layer Sewage pipe
180 x 16.4 mm /­­ SDR 11
Straight lengths of 12 m /­­ Coils of 100 m
Installation

Without sand bedding
Horizontal Directional Drillling (HDD)
Contact

Anwendungstechnik Gerodur
Andreas-Schubert-Straße 6
D-01844 Neustadt in Sachsen
Telefon: +49 3596 58330
E-Mail: anwendungstechnik@gerodur.de

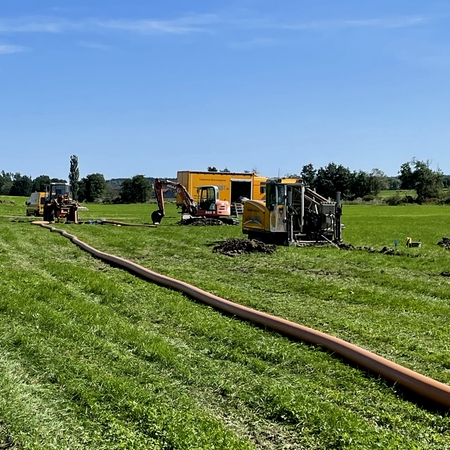

  • RCprotect® PE100-RC Abwasserdruckrohr 3-schichtig für Spülbohren HDD Horizontal directional drilling Rohrstrang

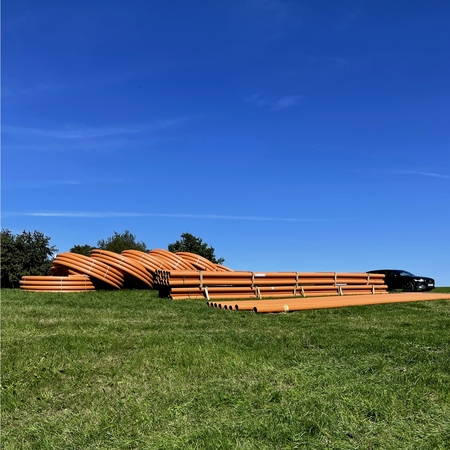

  • RCprotect® PE100-RC Abwasserleitung Ringbunde und Stangen für Spülbohrung HDD

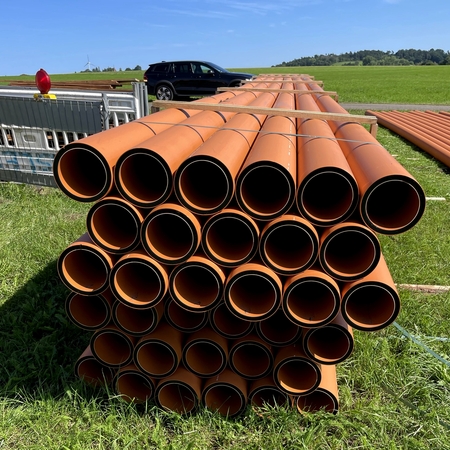

  • RCprotect® PE100-RC dreischichtiges Abwasserrohr Stangen Rohrstapel
