Protective pipe installation and pipe bundle insertion in Leipzig

Cable route for new 110 kV lines to Leipzig I substation (Thekla)
EMDS protective pipe PE100 for pipe bundle insertion
Double protection - EMDS - pipe-in-pipe installation
As part of extensive expansion work for the energy supply of Leipzig's city centre, a new cable route to the Leipzig I substation must be constructed. The route runs through the busy Kieler Straße /­ Essener Straße area, among other places. In order to avoid long-lasting traffic restrictions, the planners decided to lay a PE line protection pipe using the trenchless Horizontal Directional drilling method with subsequent PE pipe bundle insertion.

TECHNICAL SPECIFICATIONS

Installation

Without sand bedding
Horizontal Directional Drillling (HDD)
Trenchless

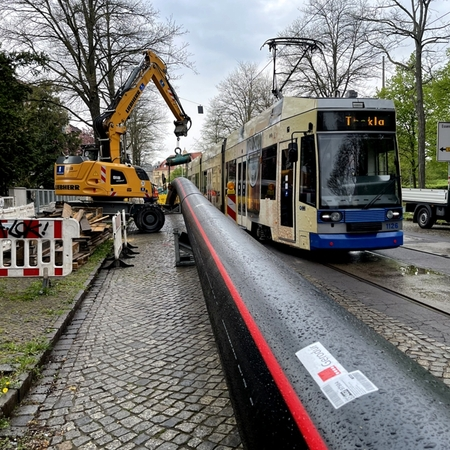

  • EMDS Grundleistungsklasse PE100 PE-HD+ Kabelschutzrohr Leipzig Krantransport

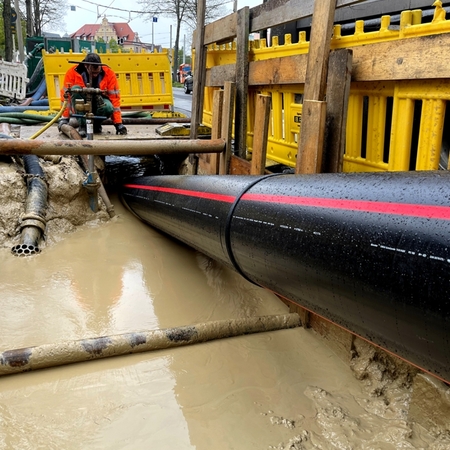

  • EMDS Kabelschutzrohr Kabeltrasse neue 110 kV Rohrbündeleinzug Spülbohren (HDD) Rollenbock

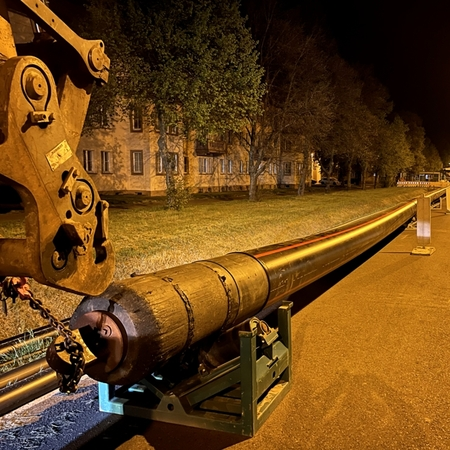

  • EMDS Kabelschutzrohr Spülbohren (HDD) Ziehkopf Zugkopf Nachtarbeit verkehrsschonend

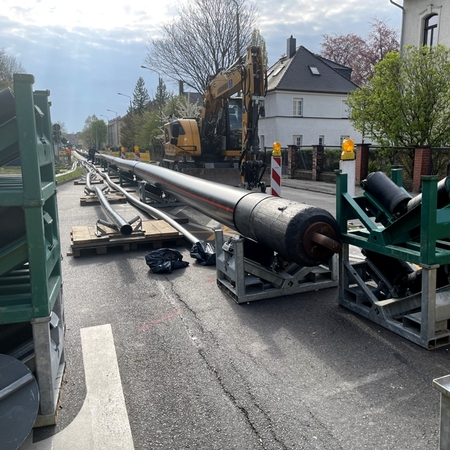

  • EMDS Grundleistungsklasse PE100 Kabelschutzrohr Spülbohren (HDD) Ziehkopf Zugkopf Rohrstrang Rollenböcke

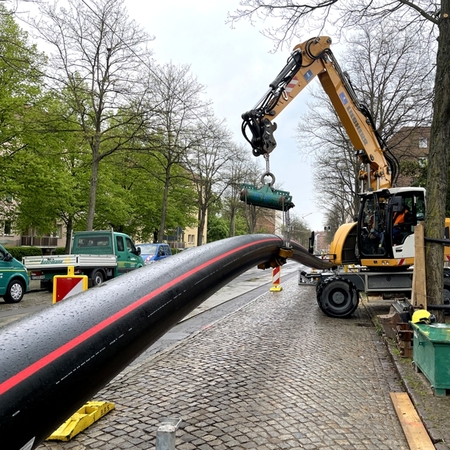

  • EMDS Kabelschutzrohr Kabeltrasse neue 110 kV  Leitungen zum Umspannwerk Leipzig I (Thekla) Kranstransport

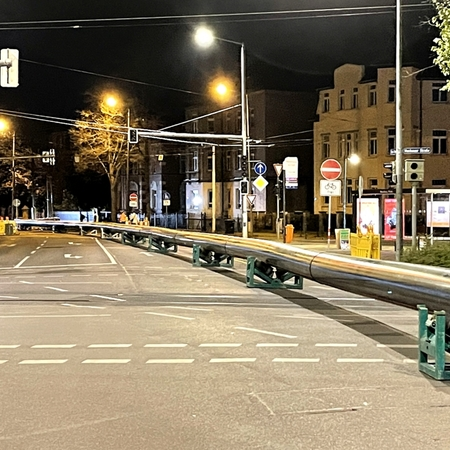

  • EMDS Kabeltrasse neue 110 kV - Leitungen zum Umspannwerk Leipzig I (Thekla) Rollenböcke Nachtverlegung

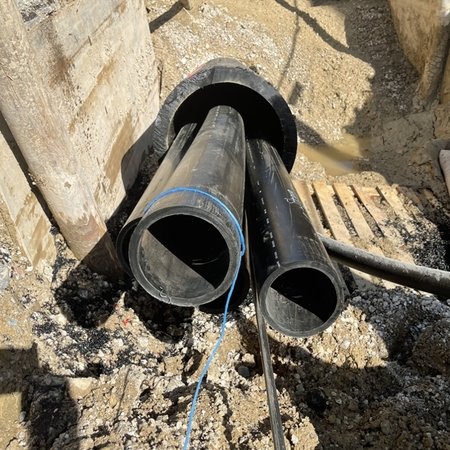

  • EMDS Kabelschutzrohr Hüllrohr für Bündeleinzug in Spülbohren (HDD) Rohreinzug Schutzrohr

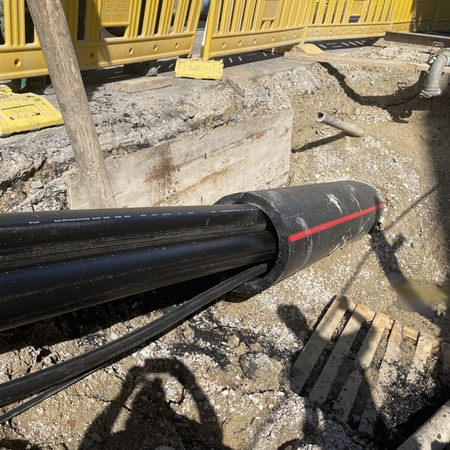

  • EMDS Kabelschutzrohr - Hüllrohr für Bündeleinzug in Spülbohren (HDD)

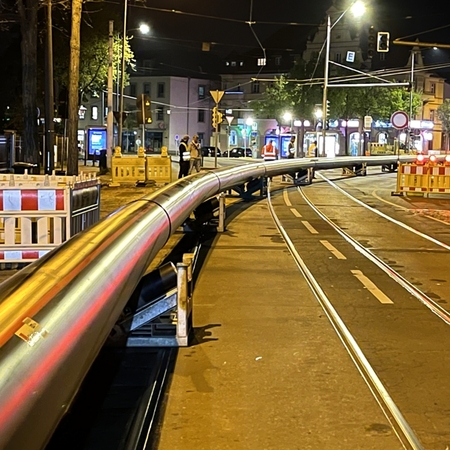

  • EMDS Kabeltrasse neue 110 kV - Leitungen zum Umspannwerk Leipzig I (Thekla) Rollenböcke Nachverlegung verkehrsschonend
  • EMDS Kabelschutzrohr - Hüllrohr für Bündeleinzug in Spülbohren (HDD)
