Restructuring of municipal wastewater disposal

Extension of the Blaufelden sewage treatment plant
Central wastewater disposal in the municipality of Blaufelden
RCprotect® with narrow trenching and the HDD method
Due to unsatisfactory conditions in wastewater disposal in the districts of Wiesenbach and Gammesfeld, several renovation options were examined with regard to economic efficiency and environmental friendliness. As a result, the municipality of Blaufelden has decided to shut down the separate sewage treatment plants in Wiesenbach and Gammelsfeld as well as three other districts. In future, the wastewater produced here is to be diverted to Blaufelden and treated in the extended collective sewage treatment plant. With this reorganisation, environmentally friendly and economical wastewater treatment and the protection of regional waters can be improved and secured in the long term. The new wastewater pipes are laid using various methods with different stress potentials (open laying in trenches, milling and horizontal directional drilling techniques). In order to fulfil these sometimes high demands on the pipe material, the decision was made to use stress crack-resistant RCprotect® pipes from Gerodur. To enable any subsequent camera inspections (TV inspections) to be carried out efficiently, the pipes were manufactured in 3 layers with a light-coloured inner layer at the client's request.

TECHNICAL SPECIFICATIONS

Type of pipe

RCprotect® - PE100-RC pressure pipe

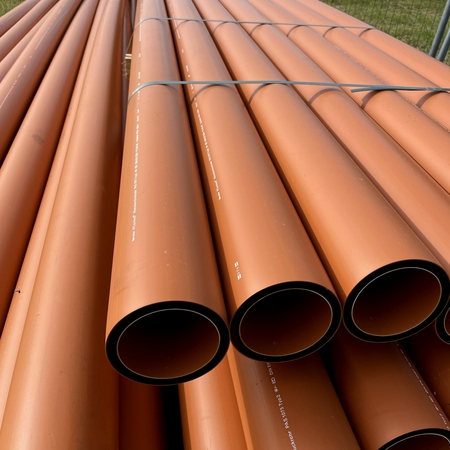

Sewage pipe 3-layer
140 x 12.7 mm /­­ SDR 11
160 x 14.6 mm /­­ SDR 11

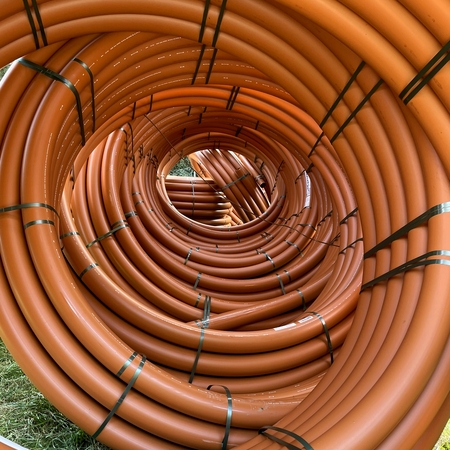

Coils of 100 m
Installation

Sand bedding
Without sand bedding
Horizontal Directional Drillling (HDD)
